aesthetics, falls within the urban infrastructure

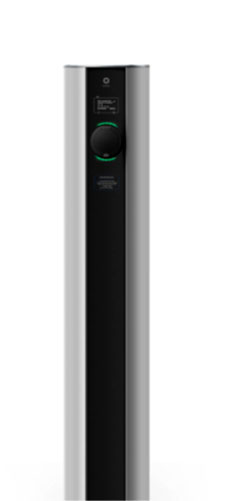

Vertica has an aluminum housing resistant to all weather conditions. It is durable, safe and has a design that fits into the urban infrastructure.
Online operation offers essential features to be able to serve customers in public spaces and beyond. This station is available in two versions - with socket or cable.
- Solid construction
- The module can be replaced in 2 minutes
- Dynamic load balancing
- The prefabricated foundation allows quick installation
and aesthetics
Wallbox is the universal charging station version for electric cars. It is modular, allows the freedom of configuration according to desires and needs.
The equipment can be equipped with the BRIDGE module, which provides OCPP 1.6 functionality
- Solid construction
- Complex communications
- Dynamic load balancing
sockets
Wallbox Duo is a unique and compact solution, a multi-point charging equipment, with the possibility of powering 2 machines simultaneously, thanks to the 2 sockets.
When installed on a network with multiple Wallbox Duo chargers, it can ensure the charging of multiple EVs using the Dynamic Load Balancing module.
- Solid construction
- Complex communications
- Dynamic load balancing
Carbo Electric charging stations can be connected in a network of up to 90 units. This option can only be possible with the BRIDGE module. It can provide internet communication to all charging stations in its own network.
The intelligent load balancing system allows the sharing of available power between charging stations, so that they can use the power from the distribution box in the most efficient way.

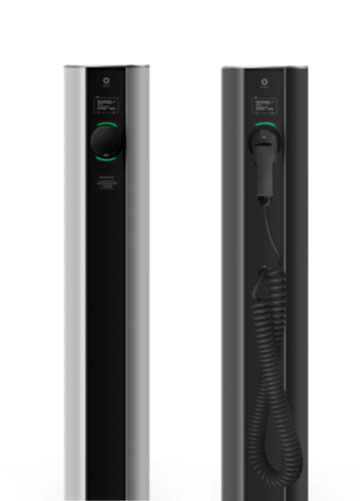

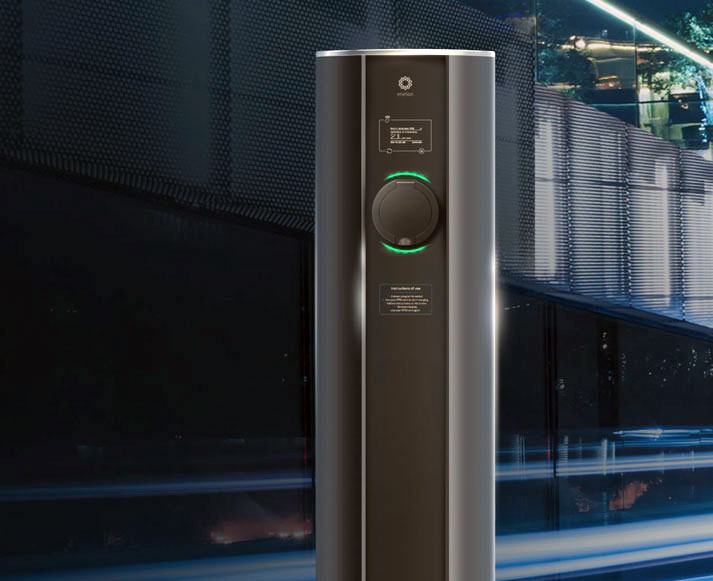

Vertica
Modular housing in 2 colors
The housing is made of anodized aluminum, which makes it resistant to weather conditions.
Assembly is easy and intuitive, and replacing the charging module takes less than 2 minutes. Convenient connection to the machine is provided with the attached TYPE 2 or TYPE 1 cable.
The spiral power cord does not tangle and automatically returns to its place after the charging process.
TECHNICAL SPECIFICATIONS
VERTICA WITH SOCKET | VERTICA WITH CABLE | |
| Charging power | 1,4 kW - 22 Kw | 1,4 kW - 22 kW |
| Charging socket / Cable | up to 2 TYPE 2 sokets | up to 2 TYPE 2 sokets |
| Socket lock | included | - |
| Spiral charging cable | - | max 4 m |
| OLED Graphic Display + RFID Reader + Operation Buttons | included | included |
| RCD | included RCD A / RCD B [1] [2] | included RCD A / RCD B [1] [2] |
| OCPP Communications 1.6 Protocol | offline / BRIDGE [1] | offline / BRIDGE [1] |
| IK classification | IK 10 | IK 10 |
| IP classification | IP 54 | IP 54 |
| Operating Temperature | -20°C / + 55°C | -20°C / + 55°C |
| Height (mm) | 1310 | 1310 |
| Length (mm) | 250 | 250 + cable |

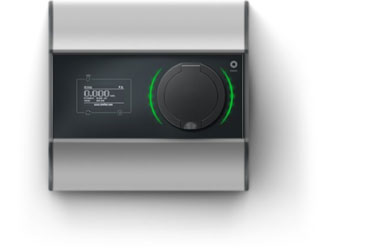

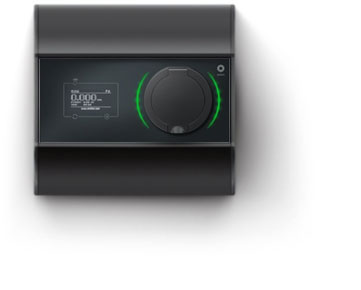

Wallbox
Modern design, made in 2 colors of anodized aluminum
The housing of the product is made of anodized aluminum and is offered in 2 colors: black – graphite and silver.
The front panel is black and made of scratch-resistant Plexiglas.
The charging station is equipped with TYPE 2 / TYPE 1 socket, RFID card reader and OLED graphic display.
The charging status is visually communicated by the LEDs on both sides of the charging socket (charging – green, standby – blue).
TECHNICAL SPECIFICATIONS
| Charging power | 1,4 kW - 22 kW |
| Charging socket / Cable | type 2 |
| OCPP Communications 1.6 Protocol | offline / BRIDGE [2] |
| OLED Graphic Display + RFID Reader + Operation Buttons | inclus |
| Dynamic load balancing (DLB) | DLB [2] |
| Energy consumption meter (three-phase) | inclus/ MID [1] |
| RCD A | inclus RCD A / RCD B [2] |
| Power cord | |
| Electric car power socket-Lock | inclus |
| IK classification | IK 10 |
| IP classification | IP 54 |
| Operating Temperature | -20°C / + 55°C |
| Height (mm) | 271 |
| Length (mm) | 249 |
| Thickness (mm) | 156 |

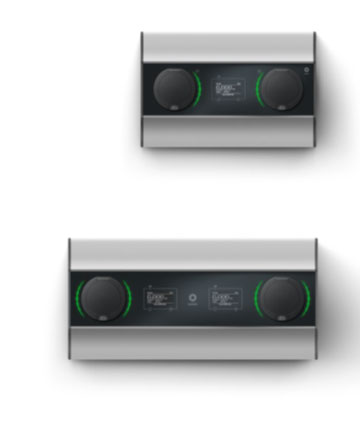

Wallbox Duo
Wallbox with 2 charging sockets
Wallbox Duo offers practical solutions – two charging sockets and comfortable use: touch button, RFID card or plug & charge mode.

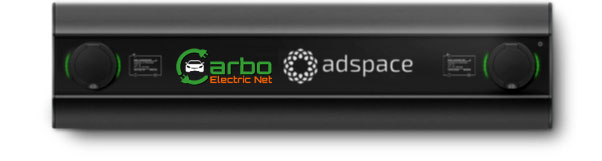

In addition, Wallbox AdSpace can be customized with a chosen logo.
Wallbox duo Power
Provides user access at a power of 22kW for each charging socket. We thus offer a unique and compact solution.
TECHNICAL SPECIFICATIONS
WALLBOX DUO | WALLBOX DUO POWER | WALLBOX ADSPACE | |
| Charging power | 2 * 1,4 kW - 22 kW | 2 * 1,4 kW - 22 kW | 2 * 1,4 kW - 22 kW |
| Charging socket / Cable | 2 * prize type 2 | 2 * prize type 2 | 2 * prize type 2 |
| OCPP Communications 1.6 Protocol | offline / BRIDGE | offline / BRIDGE | offline / BRIDGE |
| Display OLED + RFID | inclus | inclus | inclus |
| Dynamic load balancing (DLB) | DLB | DLB | DLB |
| Energy consumption meter (three-phase) | inclus/ MID [1] | inclus/ MID [1] | inclus/ MID [1] |
| RCD | inclus RCD A / RCD B | inclus RCD A / RCD B | inclus RCD A / RCD B |
| Electric car power socket-Lock | inclus | inclus | inclus |
| IK classification | IK 10 | IK 10 | IK 10 |
| IP classification | IP 54 | IP 54 | IP 54 |
| Operating Temperature | -20°C / + 55°C | -20°C / + 55°C | -20°C / + 55°C |
| Height (mm) | 250 | 250 | 250 |
| Length (mm) | 390 | 530 | 1000 |
| Thickness (mm) | 150 | 150 | 150 |
Accessories

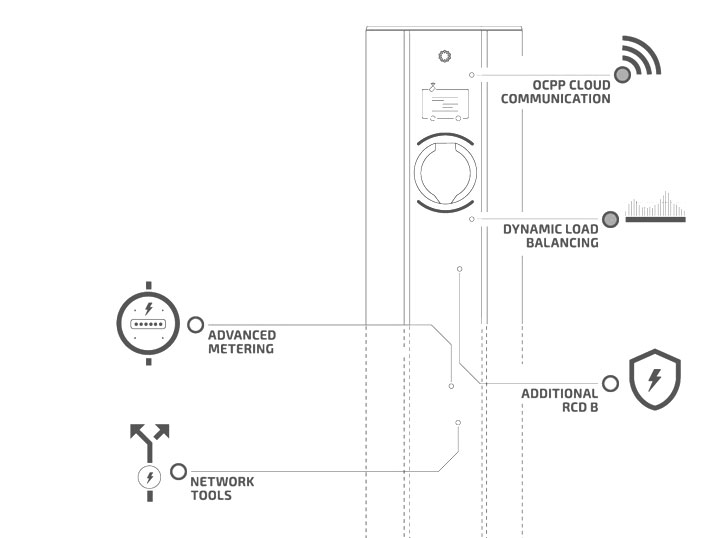

The modularity of our charging stations for electric cars leads to the most agile system on the market
Easily connect charging stations to each other
Complex communications
Dynamic load balancing
ACCESSORIES
Energy management

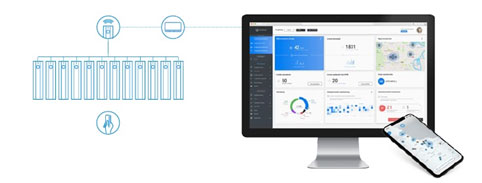

Our software offers advanced energy management: the user can define plans for limiting the charging power and assigning them to the individual charging stations.
Dynamic load balancing
The intelligent load balancing system allows the sharing of available power between charging stations, so that they can use the electric power in the most efficient way.
COMMUNICATIONS
GSM, WiFi, Ethernet cable
Charging stations can be connected in a network of up to 90 charging stations. This option can only be possible with the BRIDGE module. It can provide internet communication to all charging stations in its own network.
Security and privacy
All communication channels to our servers offer TLS and SSL encryption, API tokens expire every 24 hours prevent identity theft and passwords are stored using a secure protection scheme.
